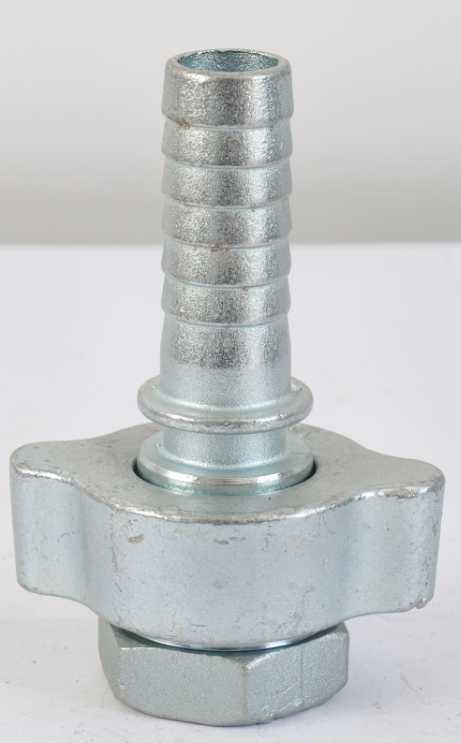

What Makes Ground Joint Couplings Essential for High-Pressure Systems?
2025-11-17
Ground joint couplings create leak-tested connections between pipes, valves, and reactors in chemical, pharmaceutical, and oil/gas applications. Unlike flanged joints, their conical sealing surfaces achieve metal-to-metal contact at pressures up to 10,000 psi without gaskets.
Technical Specifications: Precision Dimensions
Table 1: Dimensional Standards
| Parameter | Type A (Lab/Pharma) | Type B (Industrial) | Testing Certifications |
|---|---|---|---|
| Connection Size Range | 1/4" to 2" | 1/2" to 6" | PED 2014/68/EU |
| Max Operating Pressure | 5, 000 psi | 10, 000 psi | ASME B16.5 Class 2500 |
| Surface Finish (Ra) | ≤ 0.2 μm (Mirror) | 2.5 - 4.5 μm | ISO 4288 Grade N6 |
| Taper Angle | 1:10 ± 0.03° | 1:10 ± 0.05° | DIN 2971/BS 7786 |
| Material Options | 316L Stainless / Alloy 20 | Inconel 625 / Monel | ASTM A182 / A276 Compliant |
| Environment | Temperature Range | Vacuum Seal (Torr) | Cycling Tolerance | Mean Time Between Failure |
|---|---|---|---|---|
| Cryogenic (-196°C) | Full seal integrity | 1x10<sup>-9</sup> | 20, 000 cycles | 10 years |
| High-Temp (540°C) | No deformation | 1x10<sup>-7</sup> | 12, 500 cycles | 8 years |
| Corrosive (H<sub>2</sub>S Cl<sup>-</sup>) | No pitting | 1x10<sup>-8</sup> | 15, 000 cycles | 15 years |
Operational Advantages Over Alternatives
1.Zero-Permission Sealing
Precisely lapped 1:10 tapers eliminate explosive decompression hazards.
2.Thermal Compensation
Differential expansion rates accommodated without bolt re-torquing.
3.Dead Volume Reduction
80% less internal cavity volume vs. face-seal fittings prevents sample trapping in HPLC systems.
4.Installation Efficiency
Hand-tight engagement secures connections requiring just 6-8 ft-lbs torque.
Ground Joint Coupling: Technical FAQ:
Q:How often must ground joint couplings be re-lapped?
A: Under standard service:Lab environments: Every 18 months (or 1,000 disconnections)Process piping: 5-year intervals with dye-penetrant inspectionIndicators requiring service: Visible chatter marks >0.5µm depth
Q: Can ground joint coupling replace swagelok fittings in liquid oxygen systems?
A: Only Type A mirror-finished couplings rated for LOX service:Pass oxygen compatibility testing per ASTM G124Use only nickel-plated bodies to prevent gallingCleaned per IEST-STD-CC1246 Class 10 protocolsQ: What’s the correct installation torque?
A: Follow this sequence:Hand-tighten until contact force resistanceApply 1/6 turn with backup wrench (max 8 ft-lbs for 1" coupling)Mark position with paint pen; additional turns induce micro-galling
