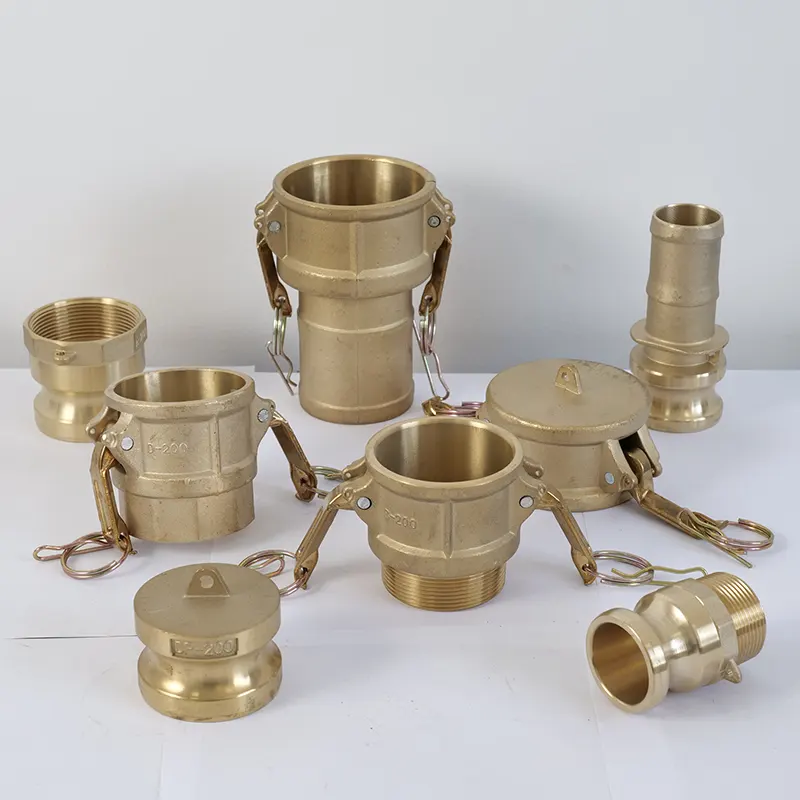

Brass Camlock Coupling
Cixi Beideli pipe fitting Co. Ltd. is brass camlock coupling manufacture,supplier and exporter in China who can wholesale brass camlock coupling.We can provide professional service and better price for you.If you are interested in brass camlock coupling,please contact with us.We follow the quality of rest assures that the price of conscience,dedicated servise.
Send Inquiry
Product Description
Product Introduction brass camlock coupling
High quality brass camlock coupling made in China, Cixi Beideli pipe fitting Co. Ltd. is a large-scale manufacture and supplier in China.Our brass camlock coupling have full sizes from 1/2”-6”,welcome to send us enquiry,we are looking forward to supply best products fro you.
Product Specification of brass camlock coupling
|
|
Size |
Marks |
|
Tyep A |
1/2” |
Type A with thread,NPT or BSP thread |
|
3/4” |
||
|
1” |
||
|
1-1/4” |
||
|
1-1/2” |
||
|
2” |
||
|
2-1/2” |
||
|
3” |
||
|
4” |
||
|
5” |
||
|
6” |
||
|
Type B |
1/2” |
Type B with handles(SS handles,alum handle,brass handles), NPT or BSP thread |
|
3/4” |
||
|
1” |
||
|
1-1/4” |
||
|
1-1/2” |
||
|
2” |
||
|
2-1/2” |
||
|
3” |
||
|
4” |
||
|
5” |
||
|
6” |
||
|
Type C |
1/2” |
Type B with handles(SS handles,alum handle,brass handles), |
|
3/4” |
||
|
1” |
||
|
1-1/4” |
||
|
1-1/2” |
||
|
2” |
||
|
2-1/2” |
||
|
3” |
||
|
4” |
||
|
5” |
||
|
6” |
||
|
Type D |
1/2” |
Type B with handles(SS handles,alum handle,brass handles), NPT or BSP thread |
|
3/4” |
||
|
1” |
||
|
1-1/4” |
||
|
1-1/2” |
||
|
2” |
||
|
2-1/2” |
||
|
3” |
||
|
4” |
||
|
5” |
||
|
6” |
||
|
Type E |
1/2” |
|
|
3/4” |
||
|
1” |
||
|
1-1/4” |
||
|
1-1/2” |
||
|
2” |
||
|
2-1/2” |
||
|
3” |
||
|
4” |
||
|
5” |
||
|
6” |
||
|
Type F |
1/2” |
NPT or BSP thread |
|
3/4” |
||
|
1” |
||
|
1-1/4” |
||
|
1-1/2” |
||
|
2” |
||
|
2-1/2” |
||
|
3” |
||
|
4” |
||
|
5” |
||
|
6” |
||
|
Type DC |
1/2” |
Type DC with handles(SS handles,alum handle,brass handles) |
|
3/4” |
||
|
1” |
||
|
1-1/4” |
||
|
1-1/2” |
||
|
2” |
||
|
2-1/2” |
||
|
3” |
||
|
4” |
||
|
5” |
||
|
6” |
||
|
Type DP |
1/2” |
|
|
3/4” |
||
|
1” |
||
|
1-1/4” |
||
|
1-1/2” |
||
|
2” |
||
|
2-1/2” |
||
|
3” |
||
|
4” |
||
|
5” |
||
|
6” |
Product Feature and brass camlock coupling
To make connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Brass camlock coupling produced to Commercial Item Description A-A-59326D.
Brass camlock coupling at ambient temperature (70°F) with standard Buna-N Seal
Installed.
Producttion details of Brass camlock coupling
The material of full set ground joint coupling is aluminium,stainless steel,brass,poly and nylon all available, with thread NPT or BSP both available.The working pressure as follows:
|
Size |
1/2”-2” |
2-1/2” |
3” |
4” |
5”and 6” |
8” |
|
PSI |
250 |
150 |
125 |
100 |
75 |
50 |
